Katadyn-lamps.pdf (166.35 KB)
| brand | description |
|---|---|
| Katadyn | K 14L |
| Katadyn | EK 36 (36 Watt – 4 Pin) |
| Katadyn | K 64 (65 Watt – 4 Pin) |
| Katadyn | K 140 |

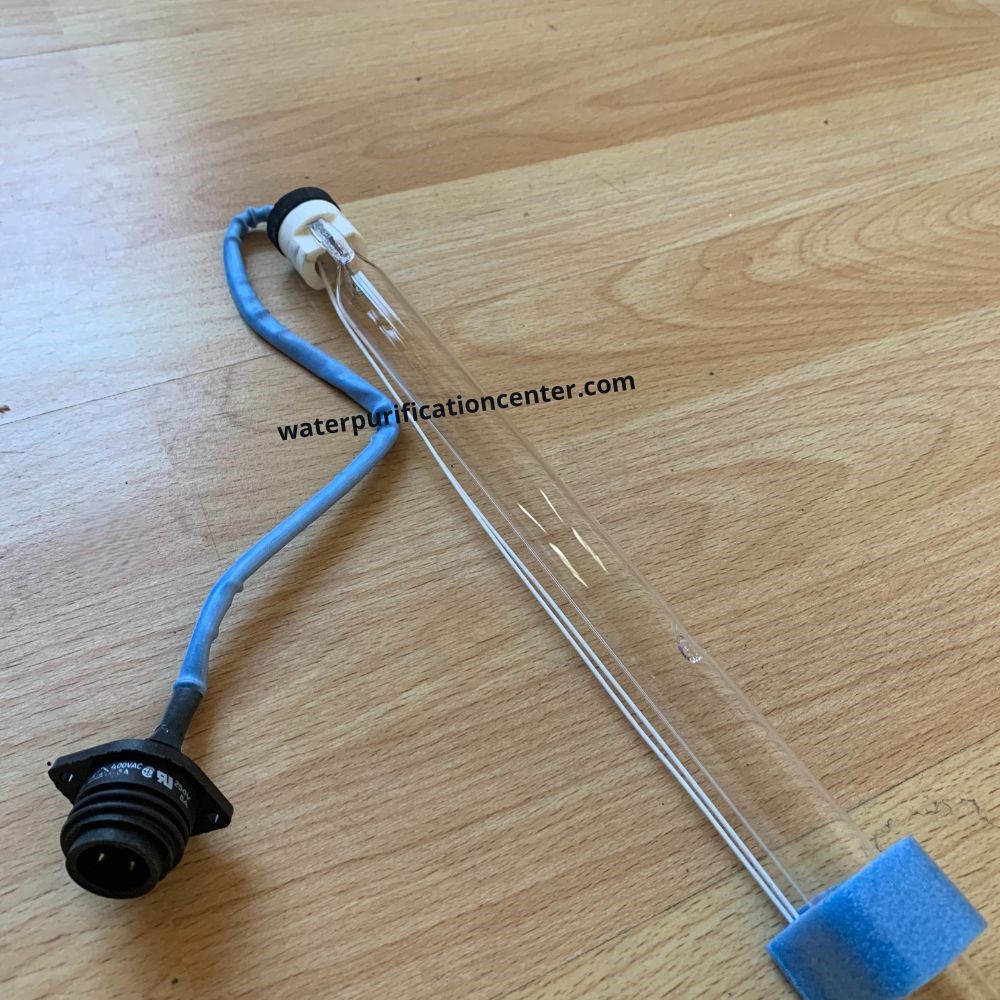

The Katadyn K64 UV lamp is a high-performance, mercury low-pressure cylindrical lamp tailored for Katadyn and Wedeco sterilization units.
It boasts a total length of 920 mm and an arc length of 850 mm, constructed from ozone-free quartz with an 18 mm diameter.
Operating at 75 V with a maximum current of 0.45 A, it consumes up to 64 W of power.
The lamp utilizes a magnetic inductive ballast, powered by a 230 V / 50 Hz supply, and is designed for horizontal use with convection cooling.
It is effective across water temperatures from 5°C to 60°C, emitting a maximum irradiated power of 25 W at 254 nm.
The K64 ensures a reliable service life of 8,700 hours of continuous operation, maintaining performance with a 0.7 aging factor.
These features make it an excellent choice for consistent and efficient water sterilization.
We also have:
-quartz sleeves
-protective caps
-sensors
